COVID-19 lockdown: air pollution in cities

Last updated: 24/05/2020

Most of the nitrogen dioxide (NO₂) we breathe daily in our cities is generated by ourselves. It is generated in combustion processes such as heating and cooking, but most of the NO₂ in our streets comes from motor vehicle exhaust.

NO₂ is linked to an increased likelihood of respiratory problems. It inflames the lining of the lungs, and can reduce immunity to lung infections, paving the way for colds, flu and bronchitis. On people with asthma, it can cause more frequent and intense attacks. Children with asthma and older people with heart disease are most at risk.

This site reflects the work of Lobelia Earth and the Royal Netherlands Meteorological Institute (KNMI) on urban air quality during COVID-19 lockdowns.

License and credits

Comparison of average NO₂ concentrations, before and during lockdowns

What do these interactives show?A clear decrease in NO₂ concentrations in Madrid and Barcelona during the lockdown period. In the case of Madrid it seems clear that this decrease is due to the decrease in traffic. In the case of Barcelona, the NO₂ forecast was already very low for these days due to weather conditions. A detailed study is necessary to determine the contribution of traffic to this decline. A preliminary analysis can be found below.

Barcelona

0 h
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
0 µg/m³
50
100
Add this widget to your site

Madrid

0 h
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
0 µg/m³
50
100
Add this widget to your site
* These interactives will be updated daily.

Evolution of NO₂ concentrations before and during lockdown

Barcelona

March 1, 2020
Lockdown
0 µg/m³
50
100
Add this widget to your site

Original data sampling rate is 1 measurement per hour. The time lapse shows a 48 hours moving average with a frame every 4 hours. The moving average intends to enhance the visualization of the global trend of NO₂ concentrations and won't show the daily peaks.

Madrid

March 1, 2020
Lockdown
0 µg/m³
50
100
Add this widget to your site

Original data sampling rate is 1 measurement per hour. The time lapse shows a 48 hours moving average with a frame every 4 hours. The moving average intends to enhance the visualization of the global trend of NO₂ concentrations and won't show the daily peaks.

Preliminary analysis of the impact of lockdown regulations

In order to understand the actual contribution of the lockdown regulations to the improvement of air quality, a comparison has been made between the NO₂ forecast which reflects the “Business as usual” emission scenario (Copernicus Atmosphere Monitoring Service forecast ensemble), and the measured urban background concentration. The black line shows the concentrations as they would be without any COVID-19 regulations, while the yellow line shows the actual measuremets from the reference network stations (Open Data Madrid, Government of Catalonia station network):

Forecast (without COVID-19)
Actual measurements
Difference

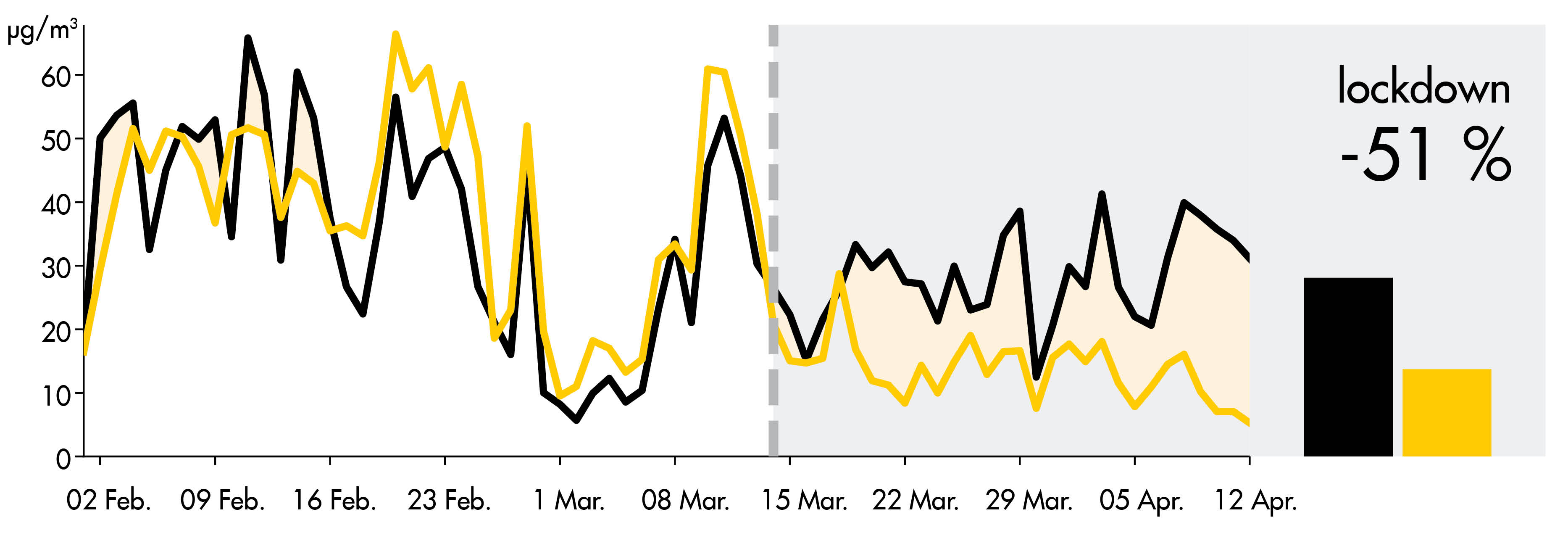

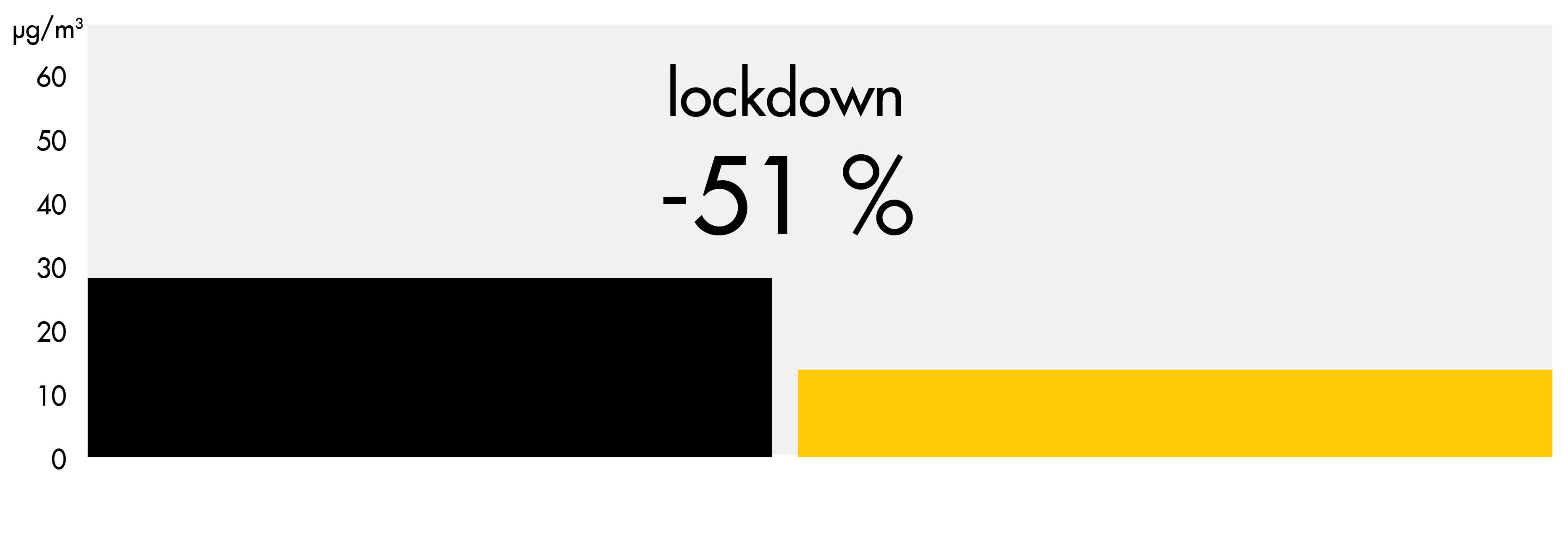

NO₂ in Madrid

Concentrations evolution chartConcentrations evolution chart
Add these charts to your site

What does the Madrid graph show?Madrid presents a clear decrease of NO₂ in-situ concentrations with respect to those forecasted, and therefore it is reasonable to assume that the low levels of NO₂ pollution are greatly due to the lockdown restrictions. The shaded area shows the difference between the expected NO₂ concentration and real measurements. It suggests a reduction in NO₂ of over 40%.

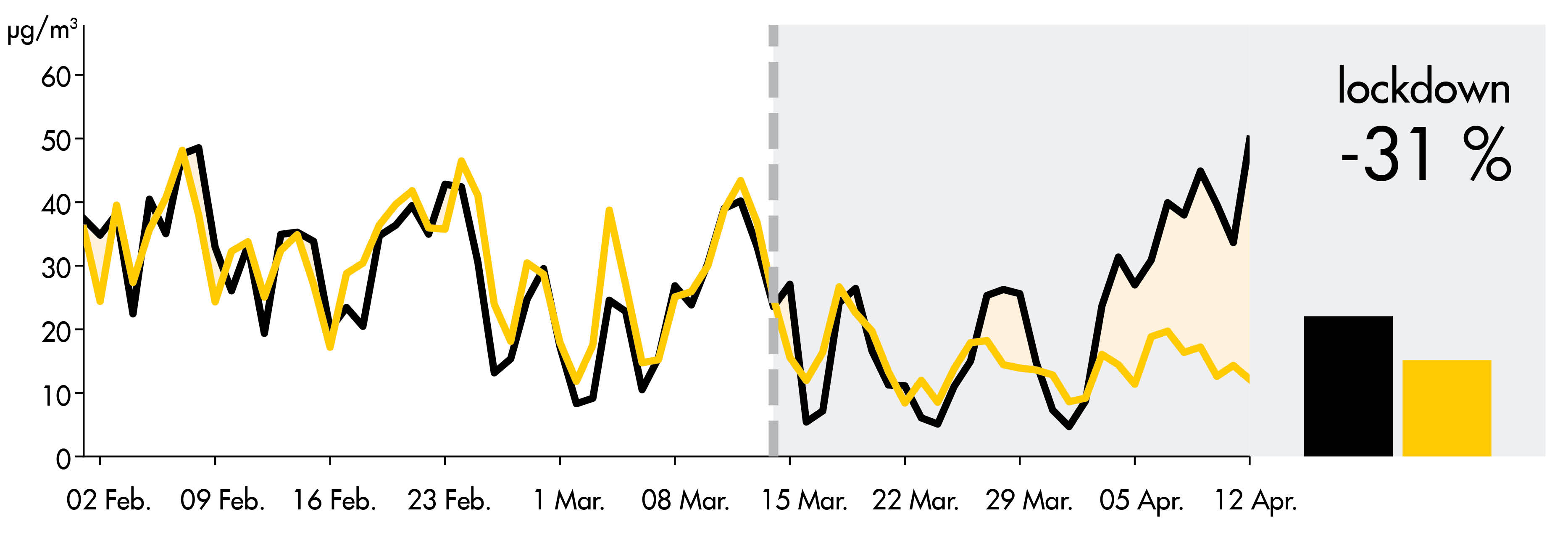

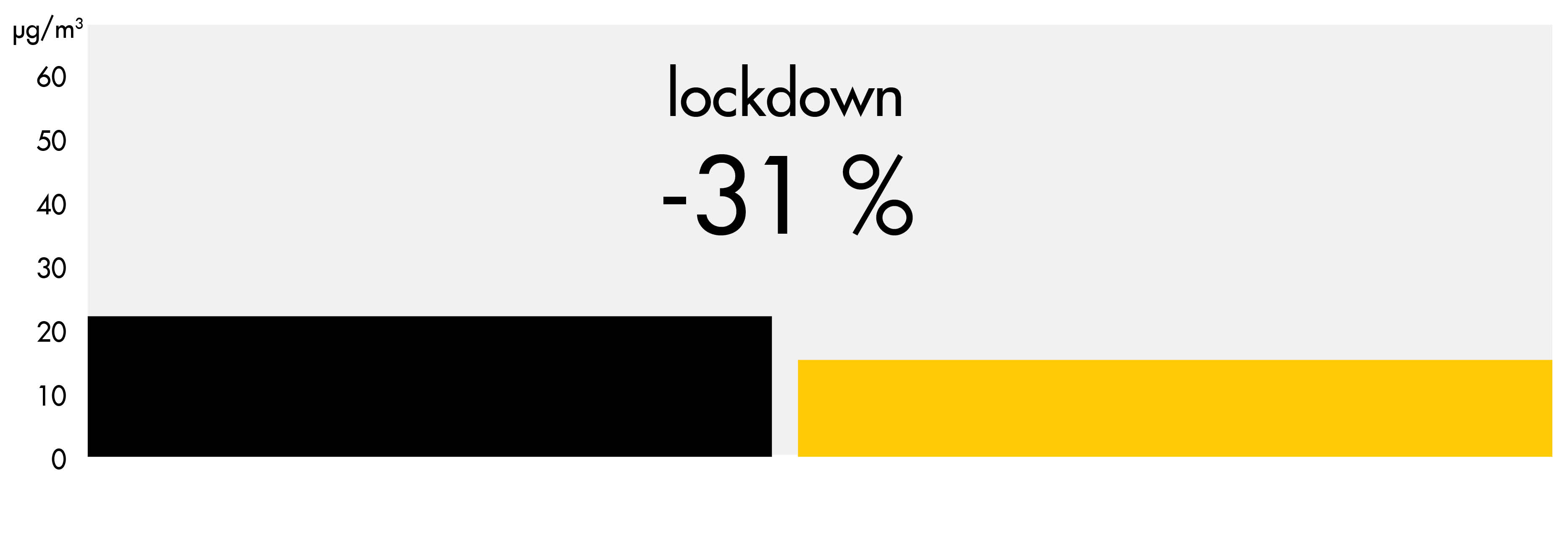

NO₂ in Barcelona

Concentrations evolution chartConcentrations evolution chart

Credit: Bas Mijing, KNMI

What does the Barcelona graph show?The NO₂ concentrations in Barcelona are clearly low during the lockdown period. However, a strong decrease in pollution was expected anyway during the first days of the lockdown due to favourable meteorological conditions (i.e. rain, wind speed and direction). In the case of Barcelona, more data is necessary to make an accurate assessment of the influence of the lockdown in the overall NO₂ concentration decrease.

Barcelona: How do inner-city concentrations reduce with respect to background levels?

Effective measures will decrease the local contributions in air pollution (mainly traffic) so they will resemble more the background values. These can clearly be seen in the Eixample street station in Barcelona.

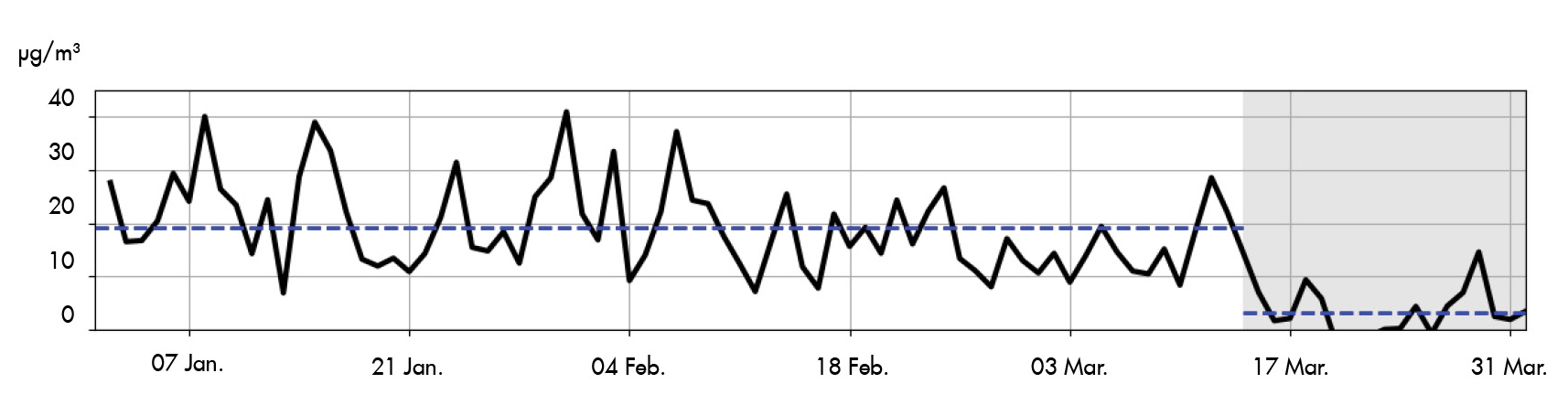

This graph shows that before the lockdown period, nearby traffic contributes around 20 µg/m³ (40%) to local NO₂ concentrations. This contribution almost disappears after March 14th when regulations are enforced.

Background
Roadside
Traffic contribution
Daily NO₂ concentration in Barcelona - Eixample (ES1438A)
Traffic contribution
Traffic contribution to NO₂ concentrations
Traffic contribution

Credit: Bas Mijing, KNMI

What can be expected in other cities?

The following graphs show the same comparison for a number of selected cities, where the shaded areas represent significative differences between the NO₂ expected and the actual concentrations. Concentration reductions are especially visible for cities which would have high pollution levels without the lockdown measures (Milano, Madrid, Paris). In Barcelona, Berlin and Amsterdam the effect of the lockdown is not visible; these cities would have had clean air anyhow in the last couple of weeks.

Forecast (without COVID-19)
Actual measurements
Difference

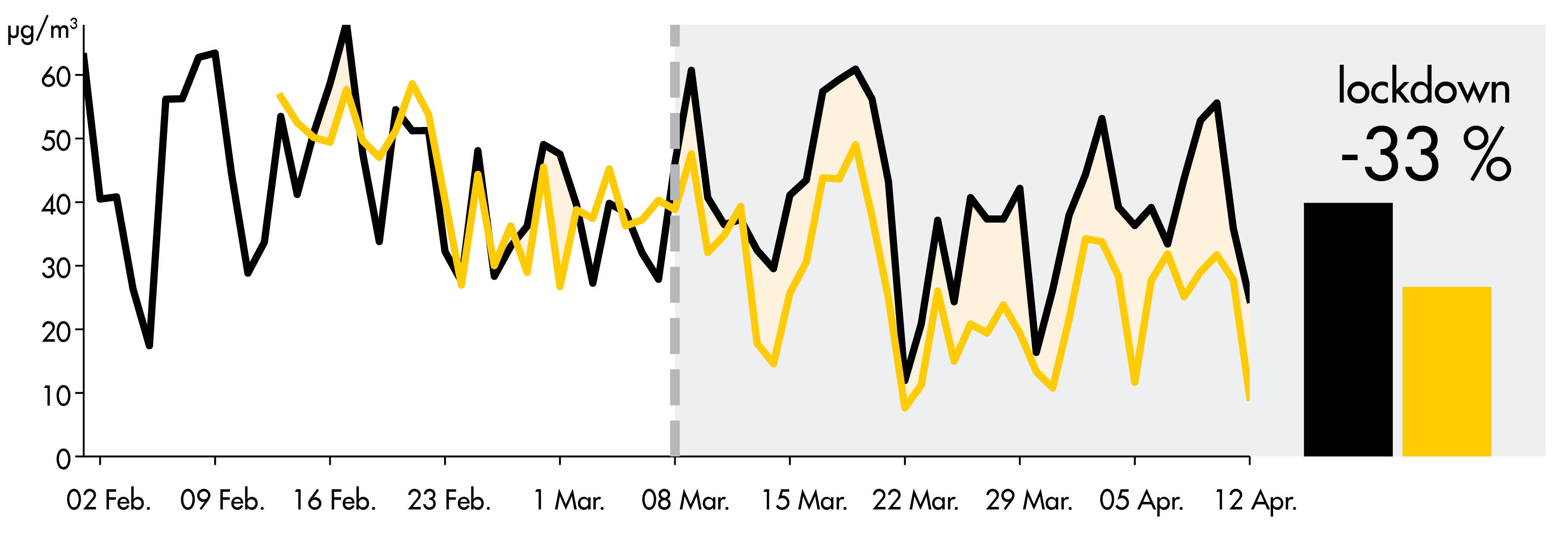

NO₂ in Milan

Concentrations evolution chartConcentrations evolution chart

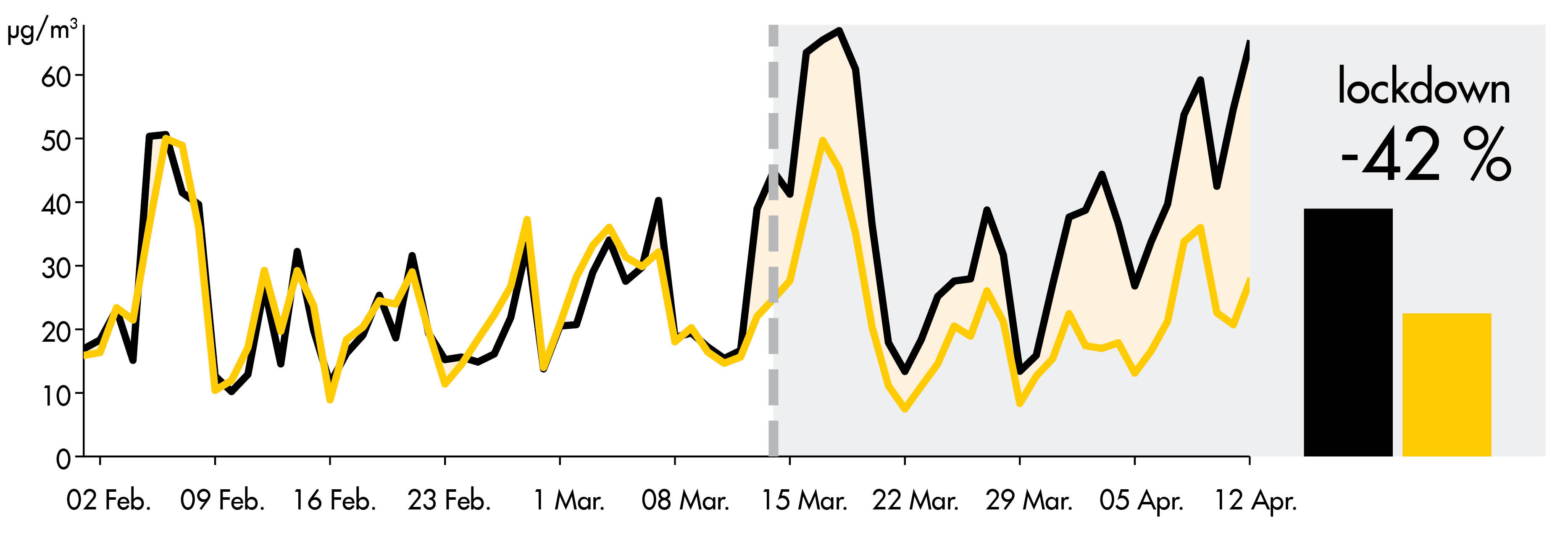

NO₂ in Paris

Concentrations evolution chartConcentrations evolution chart

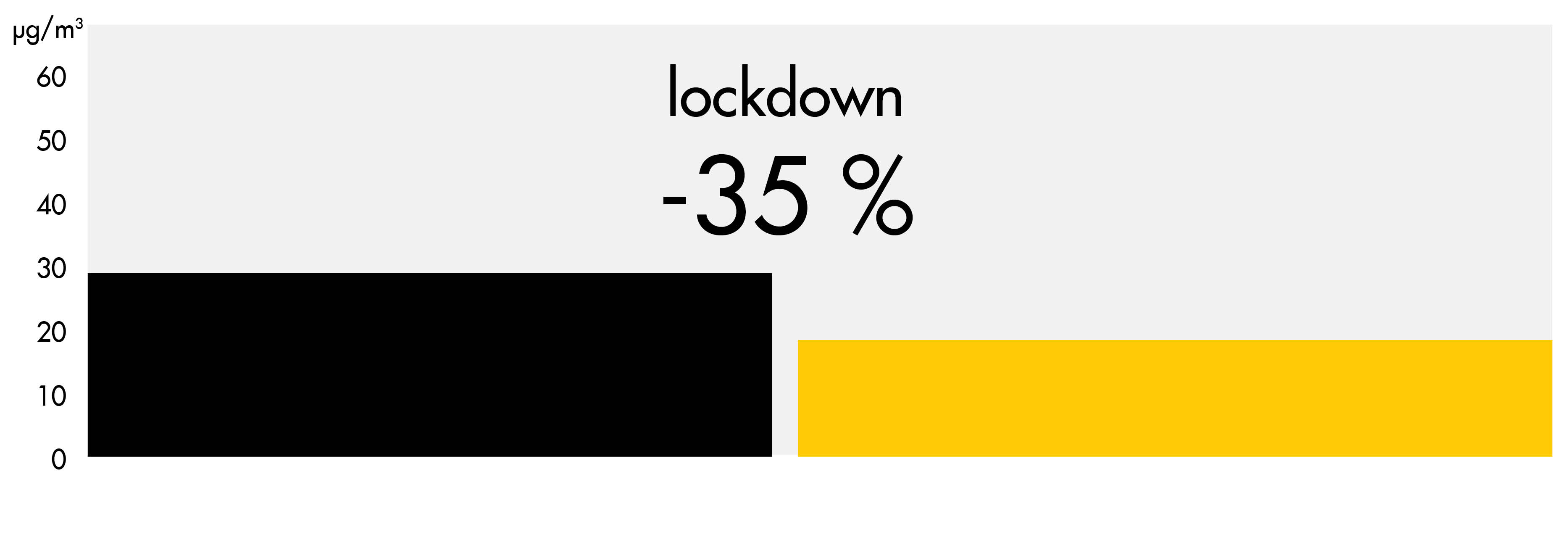

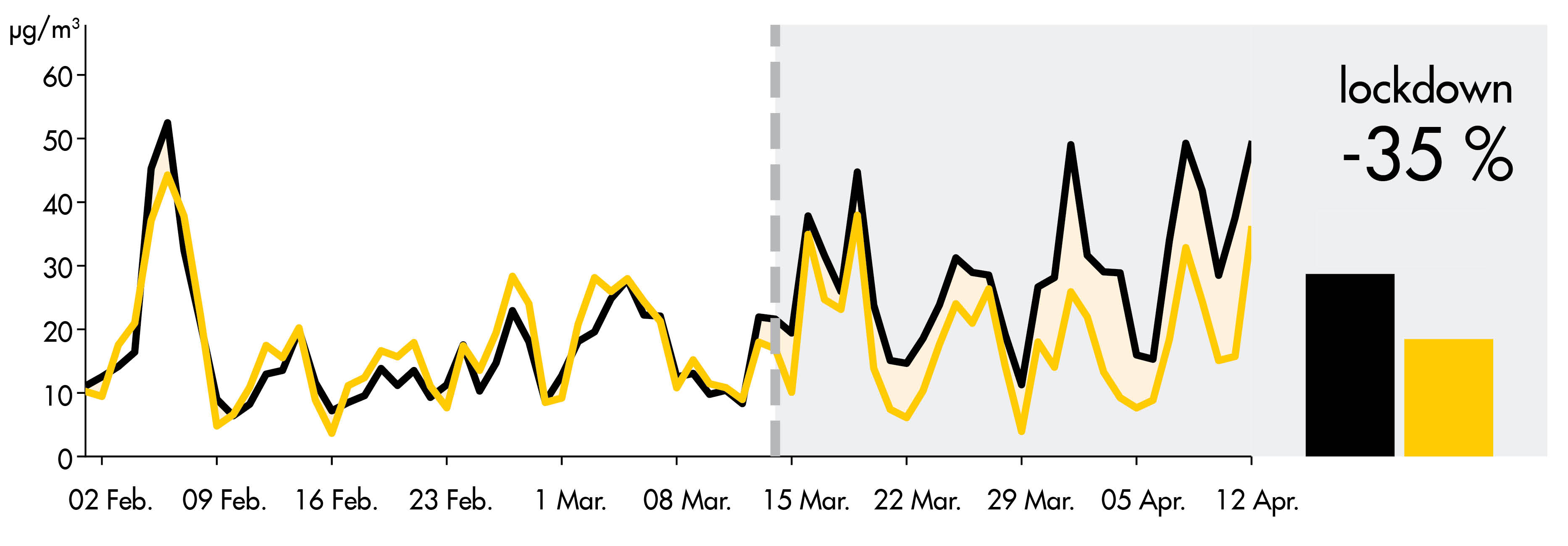

NO₂ in Brussels

Concentrations evolution chartConcentrations evolution chart

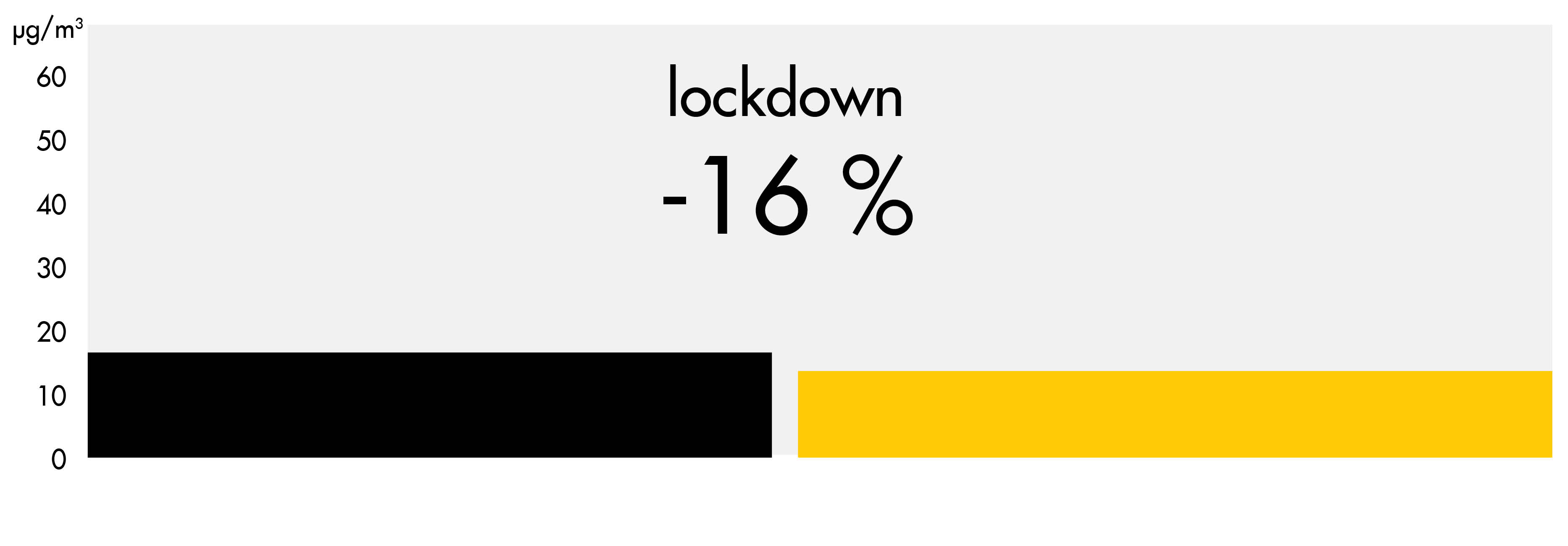

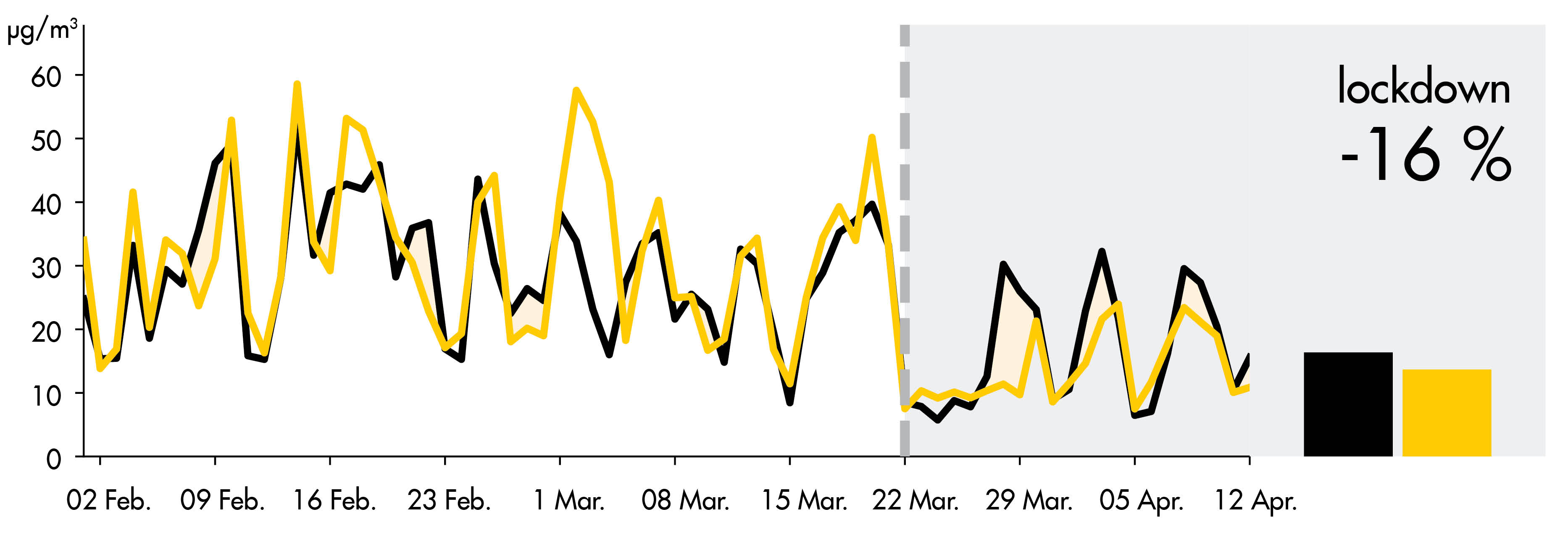

NO₂ in Bucharest

Concentrations evolution chartConcentrations evolution chart

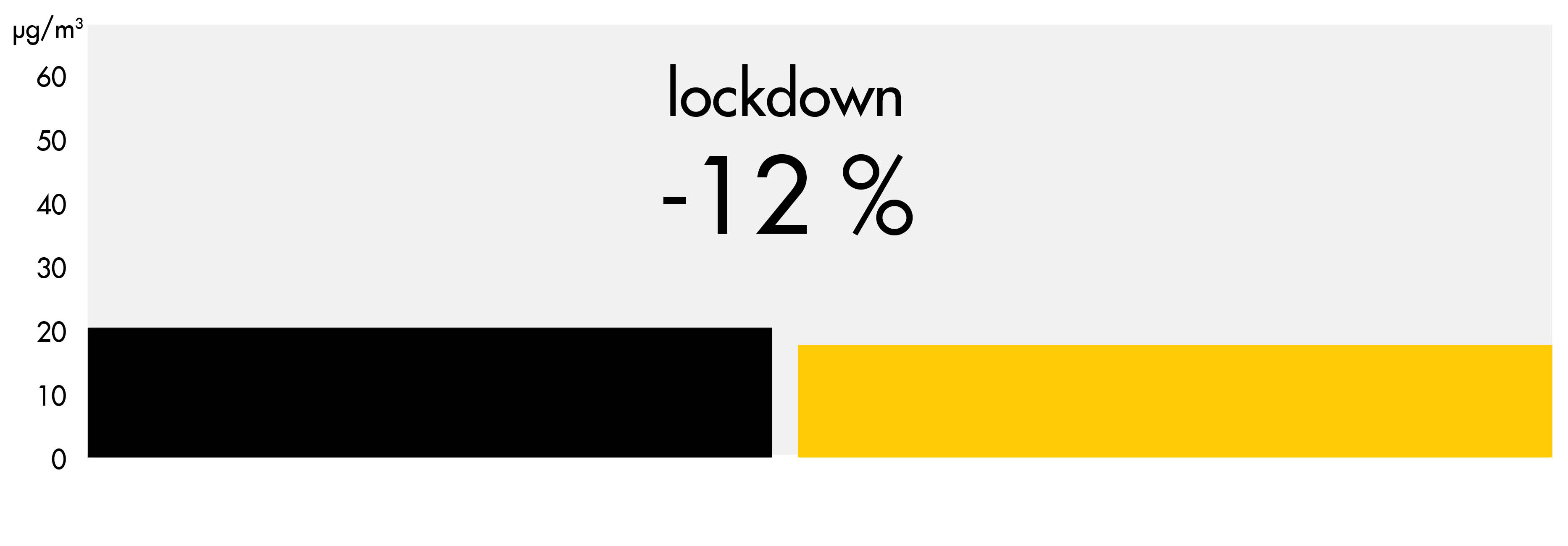

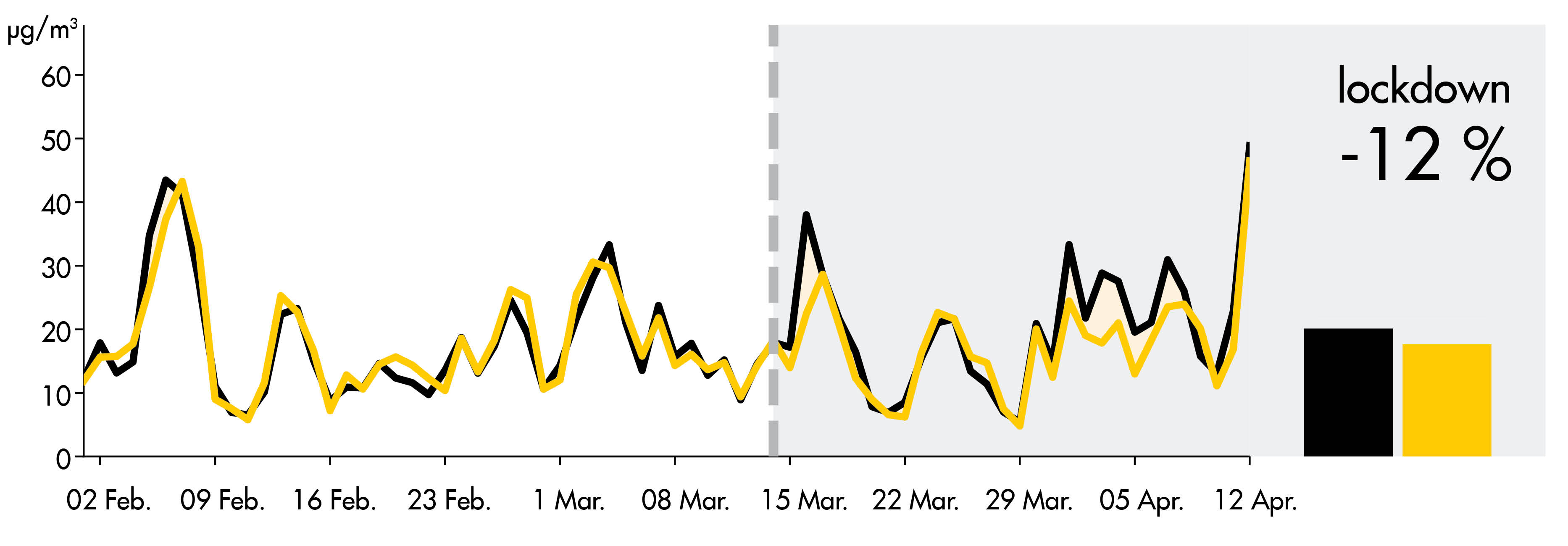

NO₂ in Amsterdam

Concentrations evolution chartConcentrations evolution chart

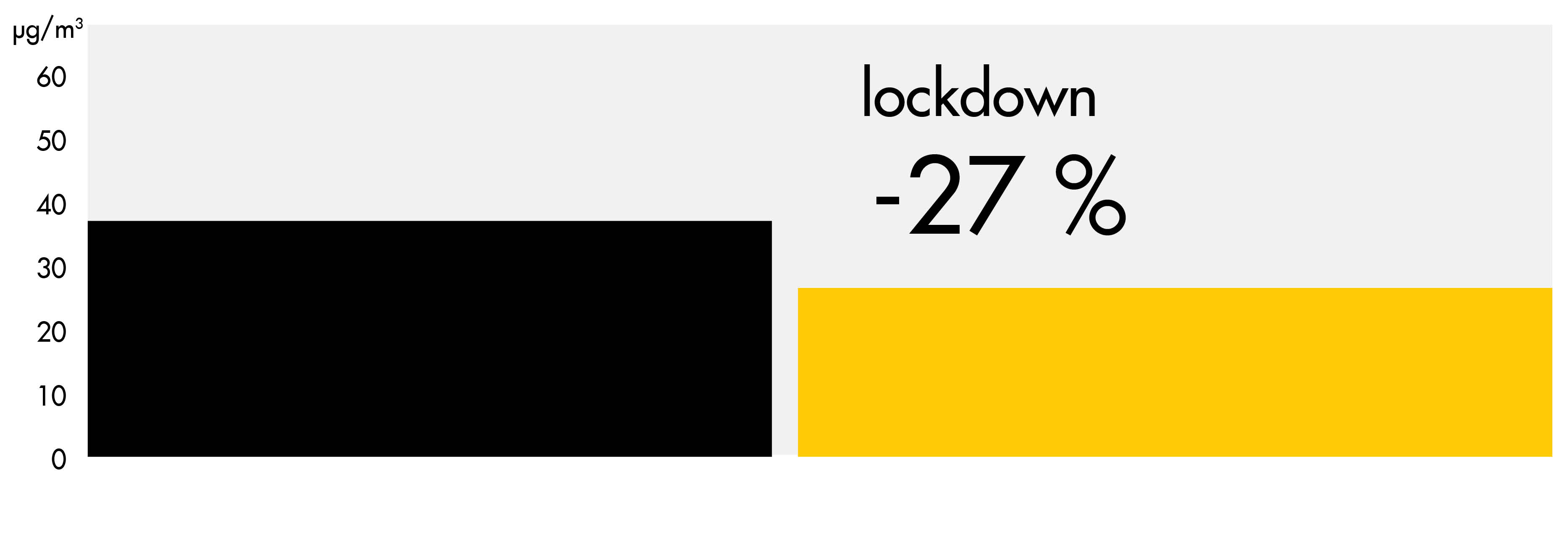

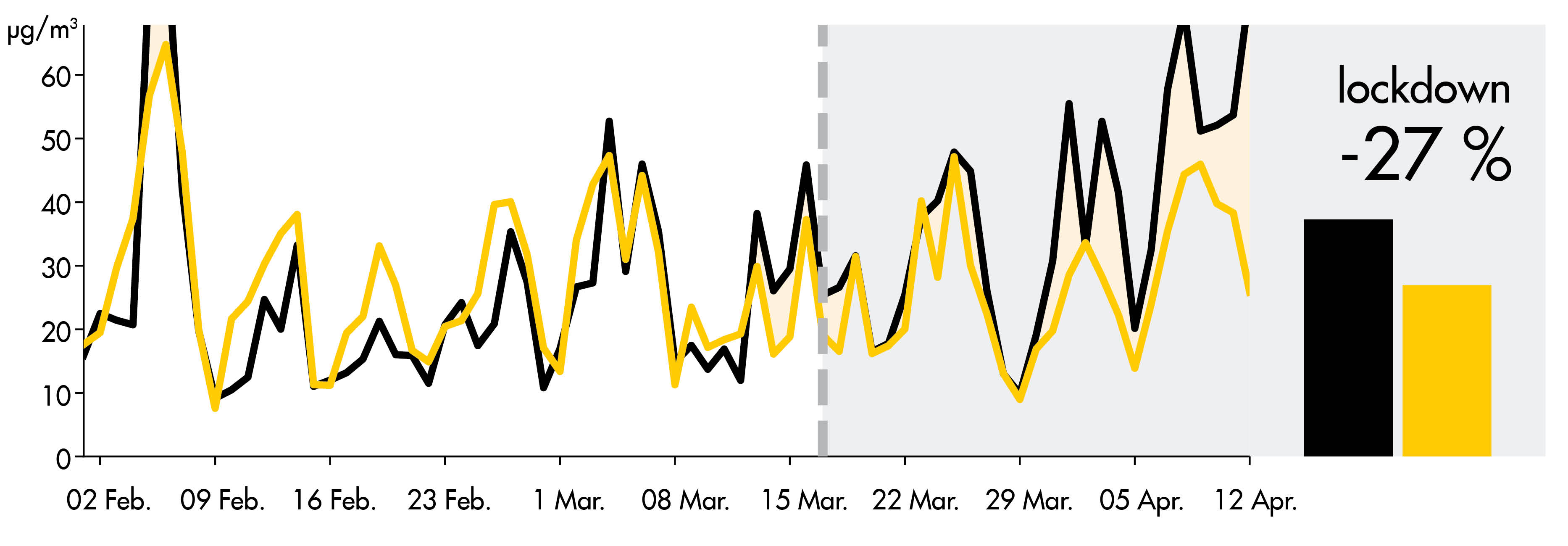

NO₂ in London

Concentrations evolution chartConcentrations evolution chart

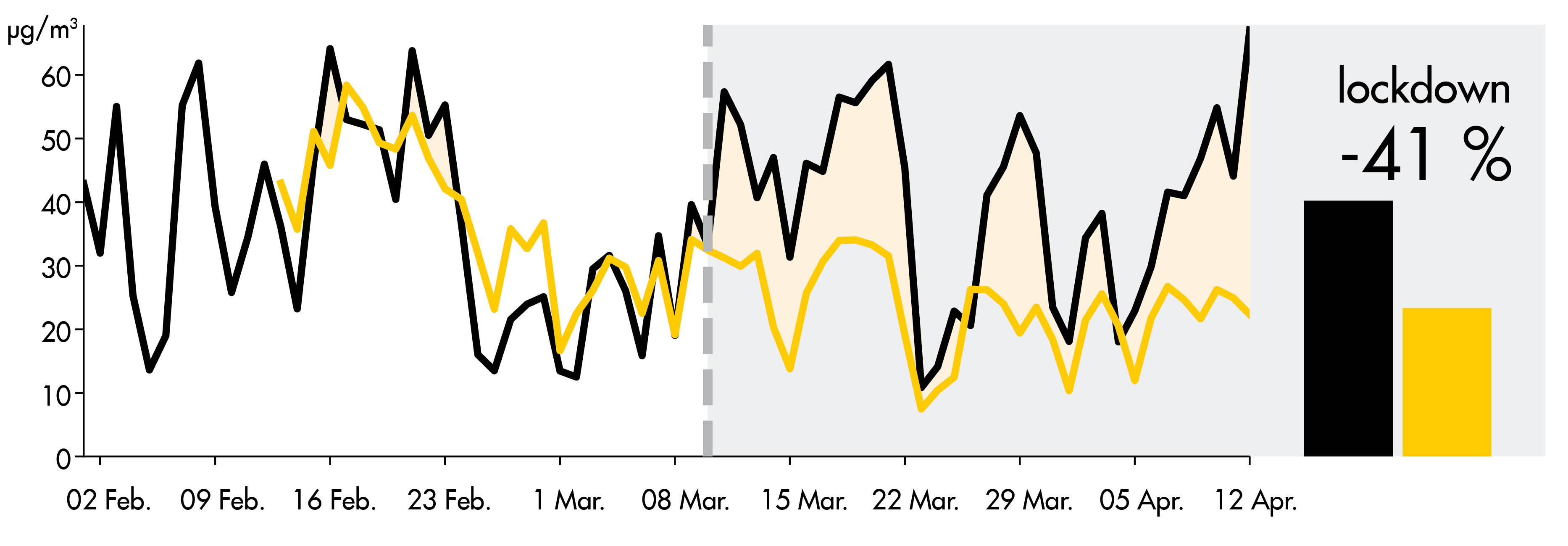

NO₂ in Rome

Concentrations evolution chartConcentrations evolution chart

Credit: Bas Mijing, KNMI

Add these charts to your site
For professionals:We are a small company located in Barcelona, in love with satellites, computers, scientific communication and our planet. We process and publish air quality and climate data. If you are interested and want to learn more, please contact us at info@lobelia.earth.
